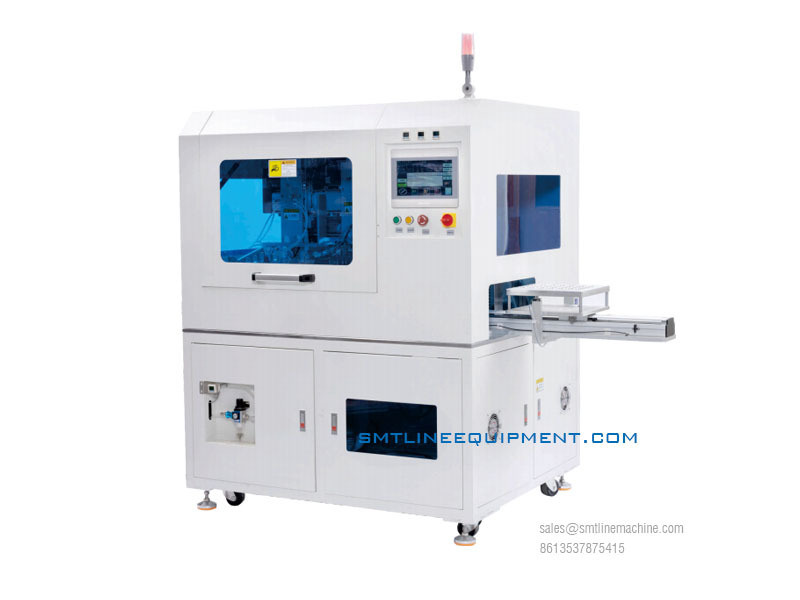

CN-VC10A Online Rotary V-groove PCB Separator cutting machine

CN-VC10A Online Rotary V-groove PCB Separator cutting machine

The CN-VC10A Online Rotary V-groove PCB Separator is a highly efficient and intelligent PCB depaneling machine, designed specifically for V-groove cutting of PCB panels after the insertion process. It is widely used in the electronics manufacturing industry for high-speed and high-precision inline depaneling operations.

This equipment features automatic PCB loading, cutting, and unloading, allowing for fully automated operation from start to finish. It significantly improves production efficiency while reducing manual labor. With its precise transmission system and cutting mechanism, it ensures consistent depaneling quality and minimizes the risk of stress damage that is common with manual cutting methods.

The machine is controlled by an advanced PLC system paired with a WEINVIEW touch screen interface, providing a user-friendly and intuitive operating experience. Operators can easily set various parameters, switch cutting modes, and monitor the process in real time. The system is designed to guarantee seamless coordination between board feeding and cutting actions, effectively preventing issues like board jamming or misalignment.

To ensure workplace safety, the CN-VC10A is equipped with high-sensitivity photoelectric safety sensors in the working area. These sensors will automatically stop the machine if any abnormal movement or human presence is detected, fully complying with industrial safety standards.

With its compact structure, reliable performance, and easy maintenance, the CN-VC10A is ideal for manufacturers seeking a high-performance, automated V-groove depaneling solution for large-volume and high-quality PCB production.

CN-VC10A Online Rotary V-groove PCB Separator V-CUT SMT cutting machine

FAQ GUIDE – CNVC10A Online Rotary Vgroove PCB Separator

1. What is the CNVC10A used for?

The CNVC10A is designed for inline Vgroove PCB depaneling, especially suitable for separating multiPCB panels after the insertion process. It automatically handles PCB loading, cutting, and unloading, improving production efficiency and consistency.

2. What types of PCBs are compatible with this machine?

The machine is compatible with Vgrooved FR4, aluminum, and other rigid PCBs with standard panelized designs. The maximum cutting area supported is 300mm x 300mm.

3. Is the operation fully automatic?

Yes. The CNVC10A supports fully automatic operation including railbased PCB loading, spindledriven cutting, and belt or fixturebased PCB unloading. It’s ideal for highvolume inline production environments.

4. What control system does it use?

The machine uses a reliable PLC control system combined with a Weinview (Weineng) touch screen HMI, providing an intuitive, userfriendly interface for easy parameter setup and monitoring.

5. How accurate is the cutting?

Repeatability: ±0.01mm
Cutting accuracy: ±0.05mm
This ensures minimal stress and high precision for delicate PCBs.

6. What safety features are included?

The CNVC10A is equipped with photoelectric safety sensors around the working area. If a human hand or object is detected during operation, the machine will automatically pause to prevent injury or accidents.

7. How is the PCB transferred and held during cutting?

Feeding: By rail transportation.
Transplantation: Vacuum suction nozzle or clamping system ensures stable positioning.
Discharge: Belt conveyor or fixture module.

8. What is the spindle speed and cutting speed?

Spindle speed: 0–4000 RPM
Cutting speed: 0–100 mm/s adjustable
These can be configured according to the PCB material and production requirements.

9. What are the power and air requirements?

Power supply: AC 220V, 50Hz
Air supply: 0.5–0.7MPa compressed air

10. What are the machine dimensions and weight?

Size: 1700 × 1150 × 1650mm (plus 400mm for discharge module)
Weight: 1100 kg

11. Can the flow direction be customized?

Yes, the flow direction can be set lefttoright or righttoleft to match the layout of your SMT production line.

12. Do you offer aftersales service and technical support?

Yes, we offer comprehensive aftersales service including remote support, technical consultation, spare parts supply, and onsite service if needed.

KEYWORDS:

CNVC10A Vgroove PCB separator
Online PCB Vcut machine
Rotary PCB depaneling machine
Automatic PCB Vgroove cutter
PCB Vcut separator machine
Inline PCB depaneling equipment
Online PCB cutting machine

automatic inline rotary PCB separator
highspeed PCB depaneling machine
Vgroove PCB depaneling equipment for SMT line
PLC controlled PCB separator machine
vacuum suction PCB cutting system
dualplatform rotary PCB cutter
left to right inline PCB depaneler
stressfree PCB separation solution
belt conveyor PCB unloading machine
automatic Vcut PCB board separator
precision PCB depaneling machine ±0.05mm

PCB depaneling machine with servo motor
±0.01mm repeatability PCB cutter
300x300mm PCB cutting range
4000rpm spindle PCB cutting equipment
220V 50Hz Vgroove cutting system
SMT inline Vcut machine
safety sensor PCB separator
dualplatform PCB cutting station

PCB depaneling machine for electronics manufacturing
SMT production line PCB cutter
PCB separation equipment for LED boards
PCB separator for FR4 aluminum boards
factory automation PCB cutting solution

VS Vcut PCB separator
similar to NUTEK PCB separator
replace manual Vgroove PCB cutting
alternative to offline PCB depaneling
